Date of Release: September 2023
Resolved Issues
NOTE The "*" symbol next to ID refers to the issues that have been resolved in the current release.
JIRA ID | Issue |
|---|---|
IPD-24529* | Subset of users unable to authenticate via SAML after upgrade to 5.5. |
IPD-24093* | Config-maps are getting overwritten during upgrade. |
Prerequisites
NOTE Before going through the below mentioned prerequisites for this section, ensure that all the Prerequisites for Installing Infoworks on AKS are validated.
Ensure the current deployment’s chart is present in /opt/infoworks.
Python 3.8 or later version with the pip module is installed in the Bastion VM.
Stable internet connectivity on the Bastion VM to download the required python packages from the python repository during installation/upgrades.
Validate that the version of the old chart is 5.5.0.
Ensure to take backup of MongoDB Atlas and PostgresDB PaaS. In case you don't take the backup, jobs will fail after the rollback operation. For more information, refer to the MongoDB Backup and PostgresDB PaaS Backup
Upgrade Instructions
To upgrade Infoworks on Kubernetes:
It is assumed that the existing chart is placed in the /opt/infoworks directory and the user has the access permission.
Before selecting the type of upgrade execute the following commands.
Step 1: Create the required directories and change the path to that directory.
Internet-free Upgrade
NOTE If you are upgrading via Internet-based procedure, skip to the next section.
Step 1: Download the upgrade tar files shared by the Infoworks team to the Bastion (Jump host) VM and place it under $IW_HOME/downloads.
Step 2: To configure Internet-free upgrade, execute the following command:
Internet-based Upgrade
Step 1: Download the Update script tar file.
Common Steps for Both Internet-free and Internet-based
NOTE Once you have selected the type of upgrade, the below mentioned steps are common for both Internet-free and Internet-based.
Step 1: Extract the iwx_updater_k8s_5.5.0.1.tar.gz under $IW_HOME/downloads.
Do not extract the tar file to /opt/infoworks/iw-k8s-installer as it would result in loss of data.
This should create two new files as follows - update-k8s.sh and configure.sh.
Step 2: Run the script.
NOTE At the end of the above command's execution, if you want to run helm upgrade manually, then type N and press Enter. There is a 30-second timeout set to abandon the deployment of the upgraded version. If no input is received within the timeout duration, the deployment is triggered.
Step 3: To modify any of the configurations listed below, follow the steps:
Email configurations: smtpHost, smtpPort, smtpUsername, smtpPassword
Timeout for DT
Timeout for ingestion
nginx.ingress.kubernetes.io/proxy-body-size
Step 3A: Navigate to the directory IW_HOME/iw-k8s-installer. And Edit the values.yaml file
Name | Description | Default Values | |
|---|---|---|---|
Email configuration | smtpHost | The SMTP host URL to connect to | smtp.gmail.com |
smtpPort | SMTP port | 587 | |
smtpUsername | The SMTP User to authenticate as | email address | |
smtpPassword | The Password for the SMTP user | Encrypted password | |
DT | timeoutSeconds | Timeout for DT | 7200 |
Ingestion | timeoutSeconds | Timeout for Ingestion | 7200 |
nginx.ingress | kubernetes.io/proxy-body-size | Nginx proxy body size | 10m |
NOTE
Email configurations can be found under customiwConfigs section in values.yaml
Timeouts for DT and ingestion can be found under databricks section in values.yaml
kubernetes.io/proxy-body-size can be found in nginx.ingress section in values.yaml

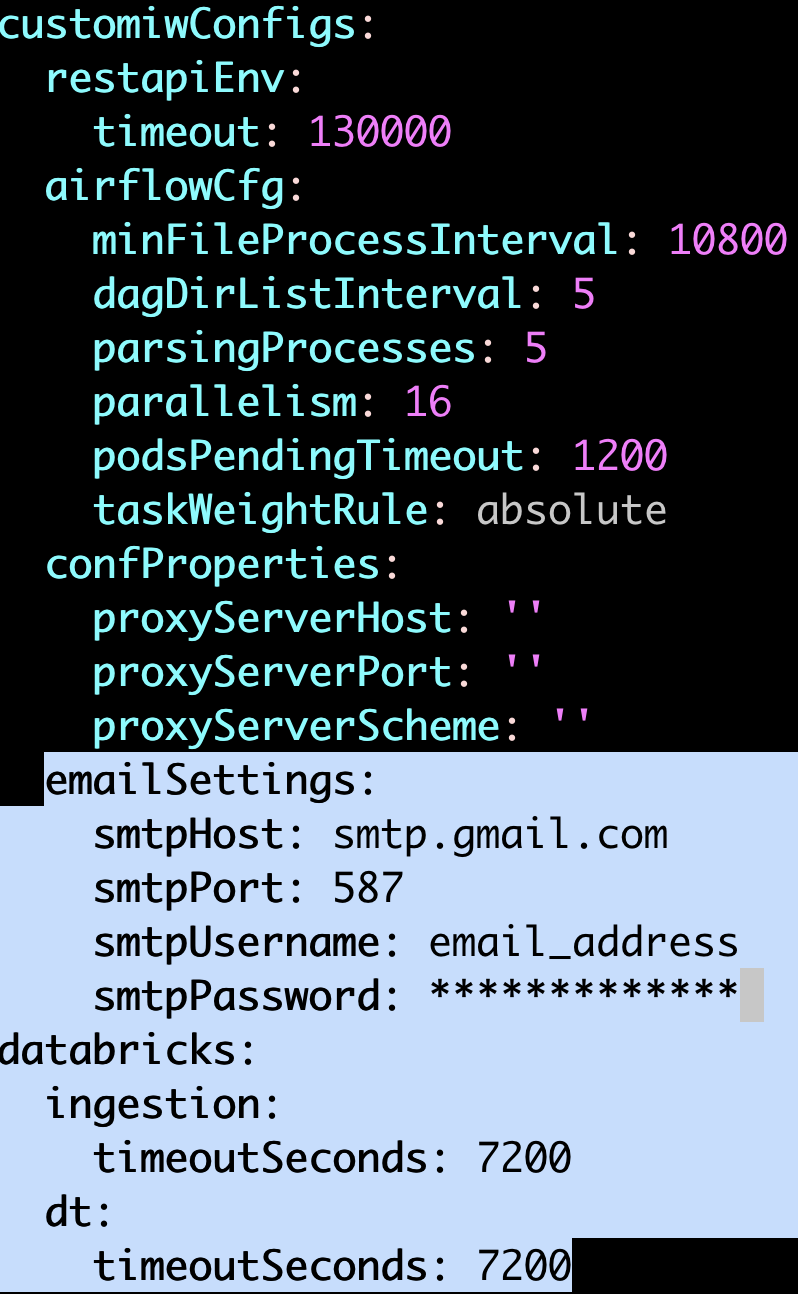

Step 3B : After editing the annotations, the values.yaml file should look as shown below:
Update the values and save the file.
Step 3C : Navigate to the directory IW_HOME/iw-k8s-installer. And Run the iw_deploy script
NOTE During the above command's execution, when it prompts if we need to override, type y and press Enter.
Step 3D: Restart all the deployments
Rollback
Prerequisites
Before executing the rollback script, ensure that IW_HOME variable is set.
Assuming Infoworks home directory is /opt/infoworks, run the below command to set the IW_HOME variable.
Validate that the version of the old chart is 5.5.0.1.
Ensure the current deployment’s chart is present in /opt/infoworks.
Execute the below command to check the appVersion.
Ensure to restore MongoDB Atlas and PostgresDB PaaS. In case you don't take the backup, jobs will fail after the restore operation. For more information, refer to the MongoDB Restore and PostgresDB Restore.
Rollback Instructions
NOTE Since IW_HOME has been exported in the Prerequisites section mentioned above, the following steps can be executed from any location for users with read/write access to the aforementioned IW_HOME.
Step 1: Download the rollback script.
Step 2: Place the Update script in the same directory as that of the existing iw-k8s-installer.
Step 3: Ensure you have permission to the $IW_HOME directory.
Step 4: Give executable permission to the rollback script using the below command.
Step 5: Run the script.
Step 6: You will receive the following prompt, "Enter N to skip running the above command to upgrade the helm deployment. (timeout: 30 seconds): ", type Y and press Enter.
NOTE If you want to run helm upgrade manually, then type N and press Enter.
NOTE There is a 30-second timeout set to abandon the deployment of the downgraded version. If no input is received within the timeout duration, the deployment is triggered.
