Onboarding a RDBMS Source

This section explains how to onboard data from a RDBMS source, to the data lake by configuring the compute environment and base location.

Before initiating the onboarding process, you must ensure to define an Environment. For more information on how to define the Environment, see Managing Environments section.

The Infoworks onboarding process includes the following steps:

1. Configure Source and Target
2. Select Tables
3. Configure Synchronization
4. Onboard Data

Configure Source and Target

After defining the compute environment, you can set up a RDBMS data source for ingestion, that includes configuring the connection URL, user credentials, and target location where you want to onboard the data.

To define the source and target, you must perform the following steps:

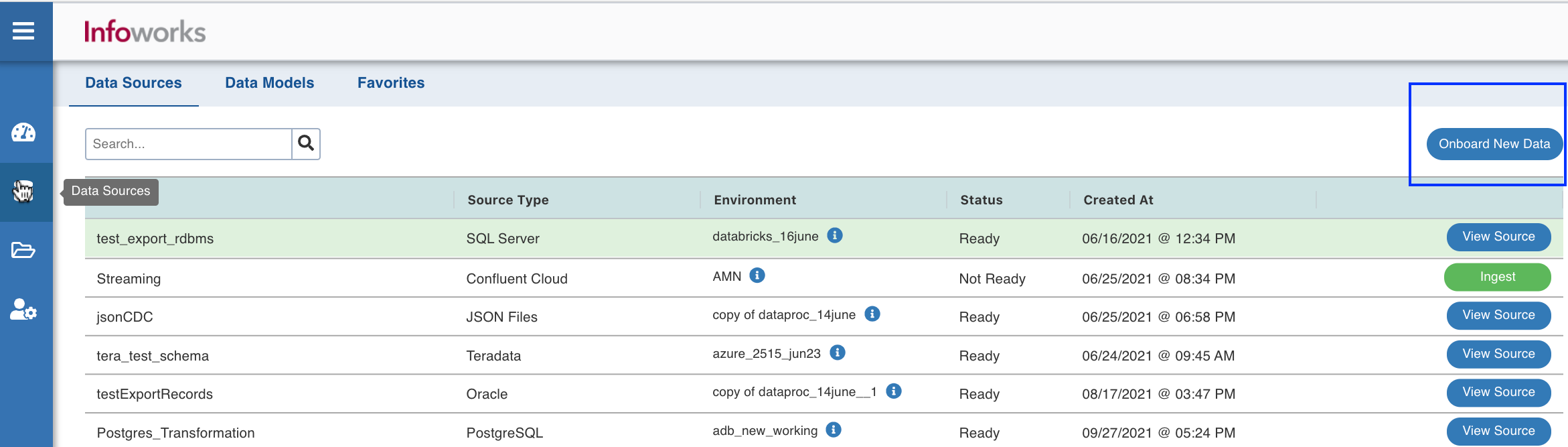

1. Select the Data Sources icon on the left navigation and click Onboard New Data.

2. Select the RDBMS Source in the Source Type, from the Categories list.

Now, you can configure the source connection properties and select the data environment where you want to onboard the data.

Configure the following fields:

You may choose to click the Save and Test Connection button to save the settings and ensure that Infoworks is able to connect to the source system.

Click Next to proceed to the next step.

Select Tables

There are two ways in which tables can be selected, browsing the source to choose the tables and configuring a custom query.

• Browse Source: You can browse the source to select the tables to be onboarded as per requirement. You can add more tables later.

1. Click Browse entire source or Filter tables to browse, and select the source tables you want to onboard the data.
2. Filter the tables by Source schema, Table Name, by entering multiple names separated by comma or by using a "%" as a wildcard.
3. Click the Browse Source button.
4. Select the tables from the list of tables displayed.
5. Click Crawl Metadata to proceed.
6. Click Next to proceed.

• Add Query As Table: You can create a table using a custom query so that you can ingest a subset of the data from a table in the source or data belonging to more than one table in the source.

1. Click the Add Query As Table tab, and click Add Query As Table button. A pop-up window appears.
2. Enter the Query, Target Schema Name and Target Table Name in the relevant fields, and click Save.
3. If you want to add more tables, click on Add Query As Table and repeat step 2.

NOTES

• Parameters can be added in Query As A Table, which can be passed or overriden during job execution. Define custom variable while writing the query in Query As A Table (e.g. $var1, $var2). You will have an option to add the default value to these variables which will be injected in the SQL query. Once the table is ingested, the parameter values can be edited from table configuration page, or overriden when ingesting a table group or while creating workflow.
• Click the Edit button to edit the entered fields, and Preview button to preview the schema and sample data.

4. Click Next to start the metadata crawl.

Configure Synchronization

The tables are automatically set to Full refresh by default.

NOTE You can also set the tables to Incremental as per your needs.

To modify the configurations and synchronize the table that is onboarded:

1. Click the Configuration link for the desired table.
2. Enter the configuration details as mentioned under the individual sections of the source:

• Onboarding Data from Netezza
• Onboarding Data from Oracle
• Onboarding Data from PostgreSQL
• Onboarding Data from MySQL
• Onboarding Data from Db2 LUW
• Onboarding Data from Db2 for z/OS
• Onboarding Data from SQL Server
• Onboarding Data from Teradata

Adding a column to the table

After metadata crawl is complete, you have the flexibility to add a target column to the table.

Target Column refers to adding a target column if you need any special columns in the target table apart from what is present in that source.

You can select the datatype you want to give for the specific column

You can select either of the following transformation modes: Simple and Advanced

Simple Mode

In this mode, you must add a transformation function that has to be applied for that column. Target Column with no transformation function applied will have null values in the target.

Advanced Mode

In this mode, you can provide the Spark expression in this field. For more information, refer to Adding Transform Derivation.

NOTE When table is in ready state (already ingested), schema editing is disabled.

Onboard Data

The final step is to onboard the tables. You can also schedule the onboarding so that the tables are periodically synchronized.

Click Onboard Data at the bottom right of the screen to onboard the data.

On the Success message pop-up, click View Data Catalog to onboard additional data or click on View Job Status to monitor the status of the onboarding job submitted.

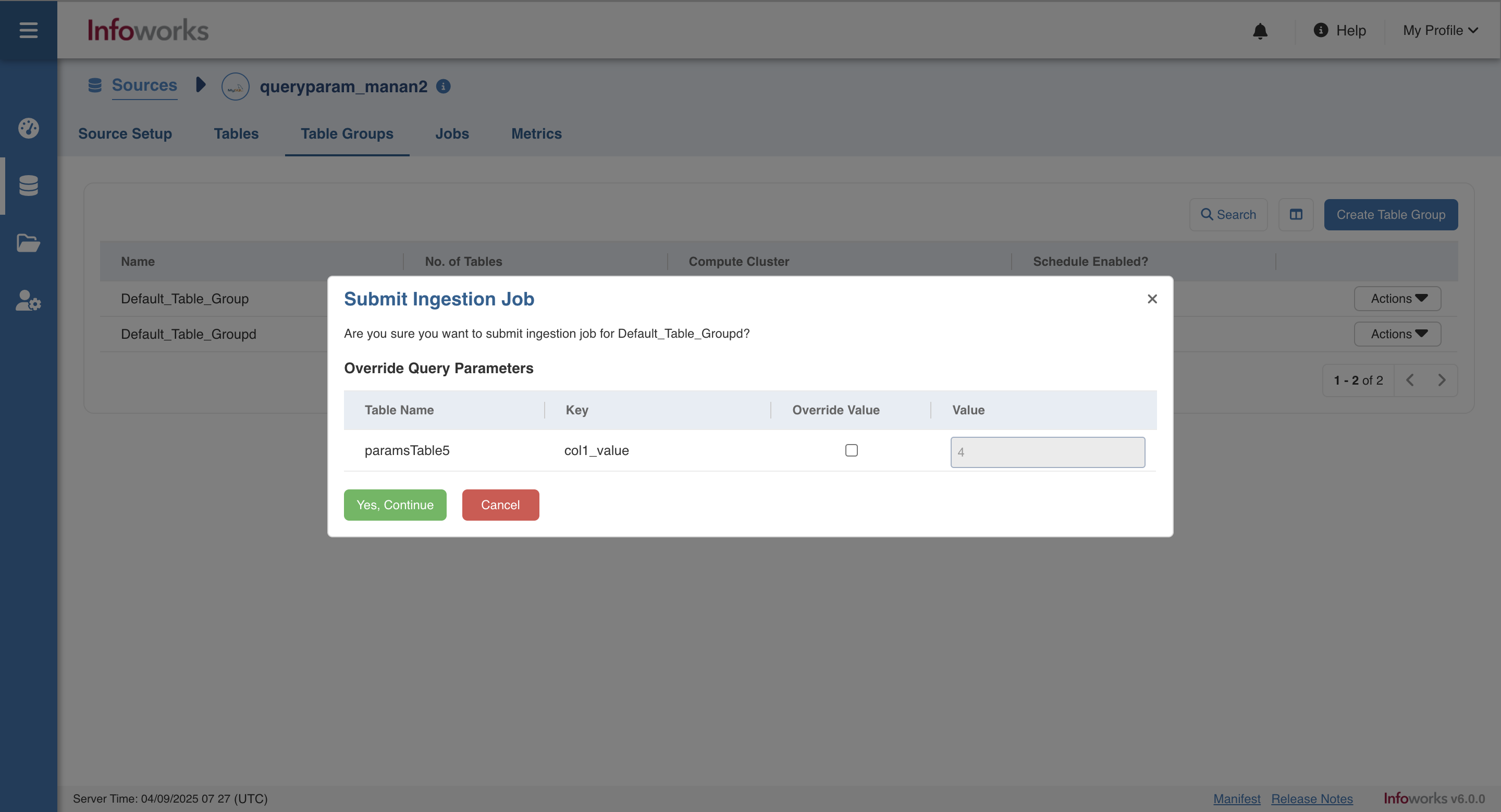

NOTE When ingesting a table group, all parameters in the Query Tables of that group will be displayed with an option to override them before ingestion.

Additional Options

Refer the sections below, if you want to configure additional parameters for the source.

Additional Connection Parameters

You can set additional connection parameters to the source as key-value pairs. These values will be used when connecting to the source database.

To add additional connection parameters:

1. Click Add and enter the Key and Value fields.
2. Select Encrypt Value to encrypt the value. For example, Password.
3. Select the Is Active check box if the parameter is to be set to Yes.
4. Click Save to save the configuration details. The parameters appear in the Additional Connection Parameters section.
5. You can edit or delete the parameters using the Edit or Delete icons.

Configuration Migration

For configuring a RDBMS source table, see Migrating Source Configurations

Optional: Source Extensions

To add a source extension to process the data before onboarding, see Adding Source Extension

Optional: Advanced Configuration

To set the Advanced Configurations at the source level, see Setting Source-Level Configurations.

Optional: Subscribers

You can notify the Subscribers for the ingestion jobs at the source level. To configure the list of subscribers, see Setting Ingestion Notification Services

Delete Source

Click Delete Source to delete the source configured.

NOTE To skip deleting the target files, set should_delete_target_files to false in the Advanced Configuration section of the source setup. By default, it is set to true.

Onboard Additional Tables

To onboard more tables from the same data source, follow these steps.

1. Navigate to the already configured data source.
2. Click the Onboard More Tables button.
3. Select the tables and provide necessary details.

NOTE Calculating the upper watermark has been optimized. By default the query used MAX() function but can be changed by setting the configurration use_default_ub_query to false at table/source level which uses GREATEST() function.
