Configuring Table Groups

Creating Table Group

The following are the steps to create a table group:

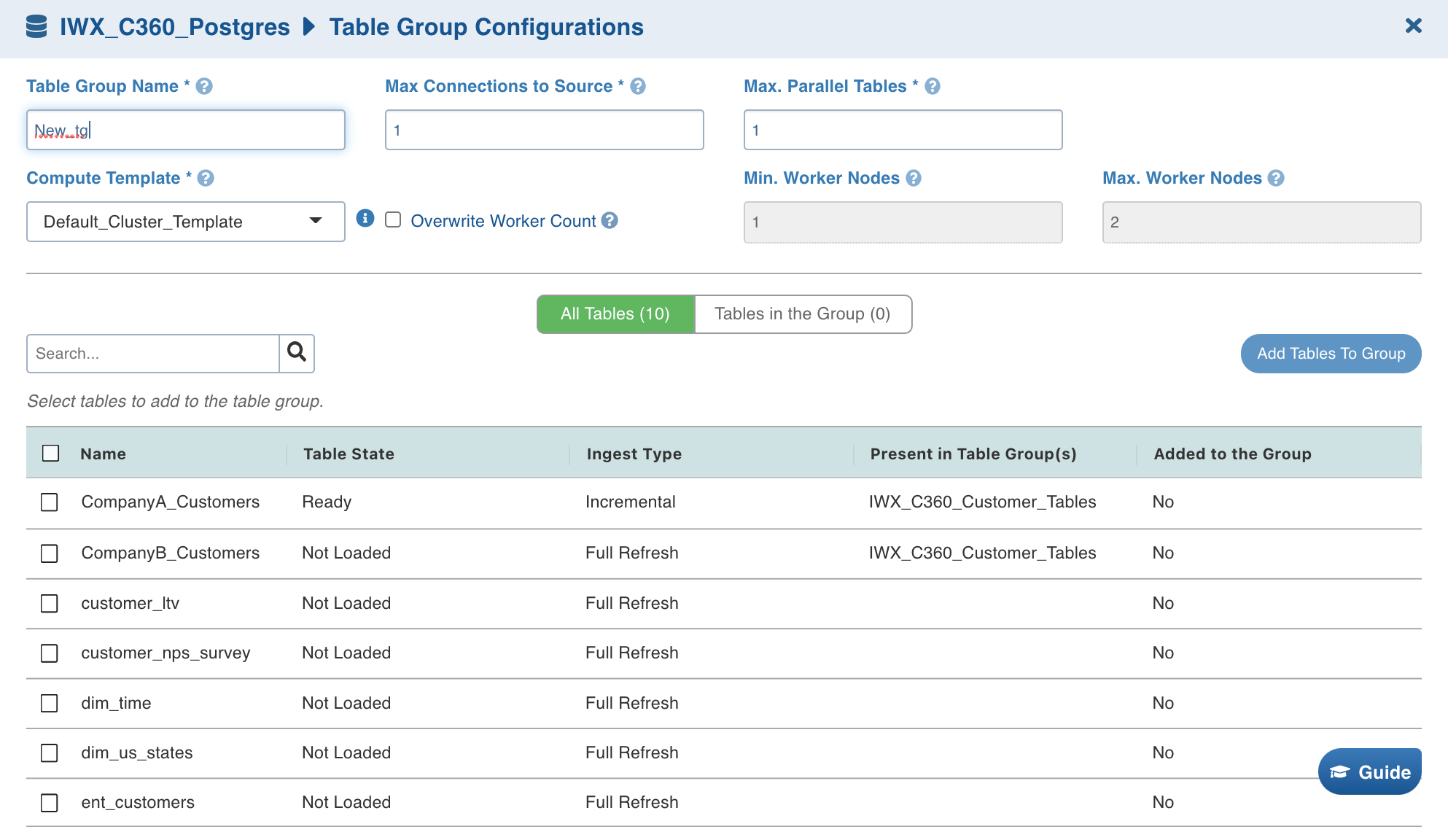

1. Click Create Table Group and provide the table group details.

2. Select the required tables and click Add Tables To Group.

3. Click Save.

Editing Table Group Details

The following are the steps to configure a table group:

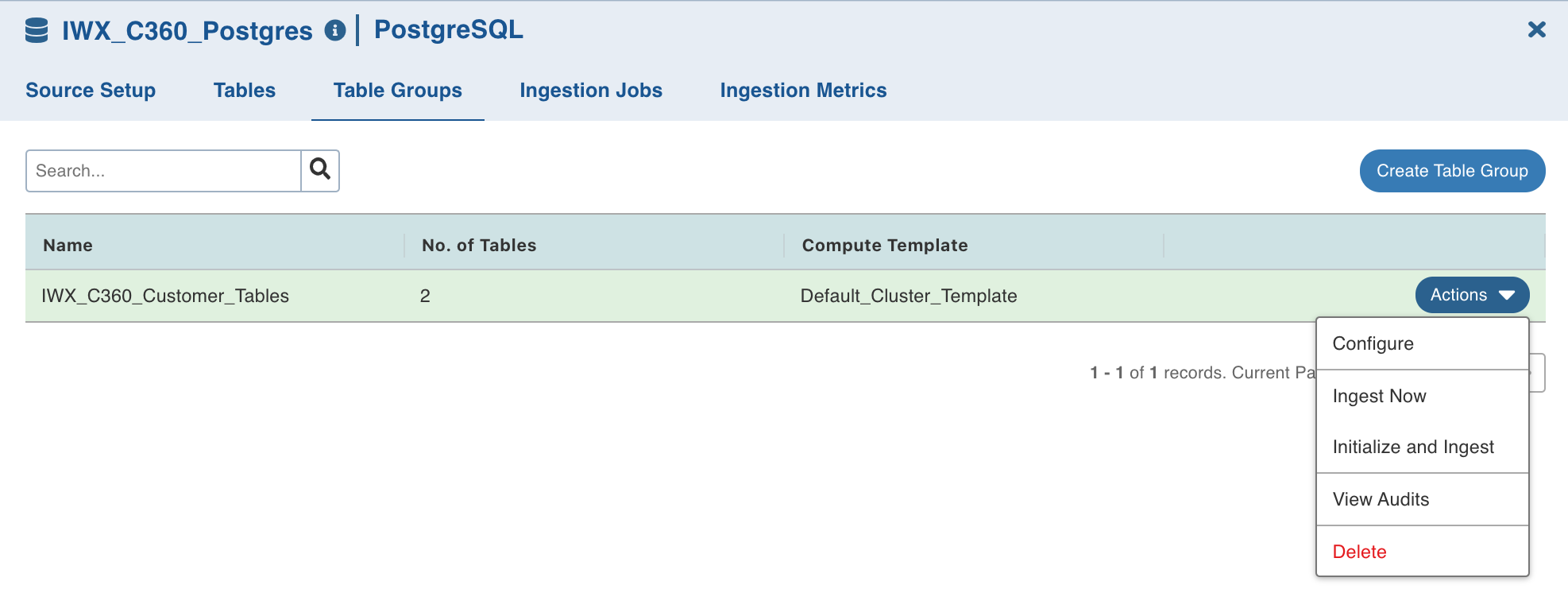

1. Navigate to the Table Groups tab.

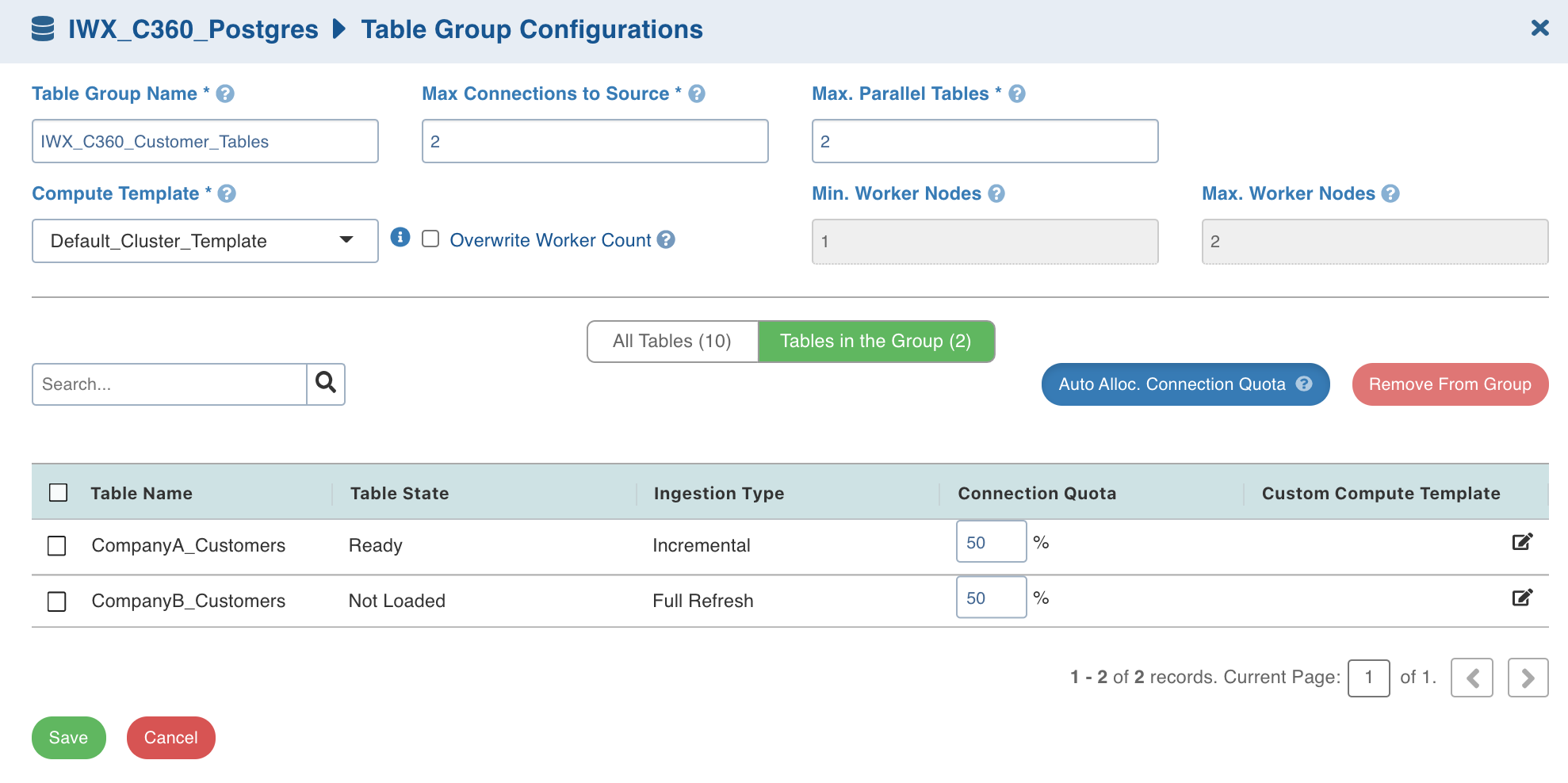

2. Click Actions for the required table group and click Configure. The table group details with the list of tables will be displayed.

3. Edit the required details.

4. Click All Tables to view all the tables in the source.

5. Click Tables in the Group to view the tables in the table group.
6. Click Auto Alloc. Connection Quota to autofill the Connection Quota for optimal use based on the maximum number of parallel tables. The value is calculated as 100/(Max parallel tables) or 100/(No. of tables in the group), whichever is greater.
7. Select the table and click Remove From Group to remove the table from the table group.
8. Click Save.
