Filtering Data
The Filter transformation node allows you to filter the required data/columns from the connecting source table or other nodes. |
Following are the steps to apply Filter node in pipeline:
Drag and drop the Filter node from the Transformations section to the pipeline editor page.
Connect the source node to the Filter node.
Double-click the Filter node. The properties page is displayed.

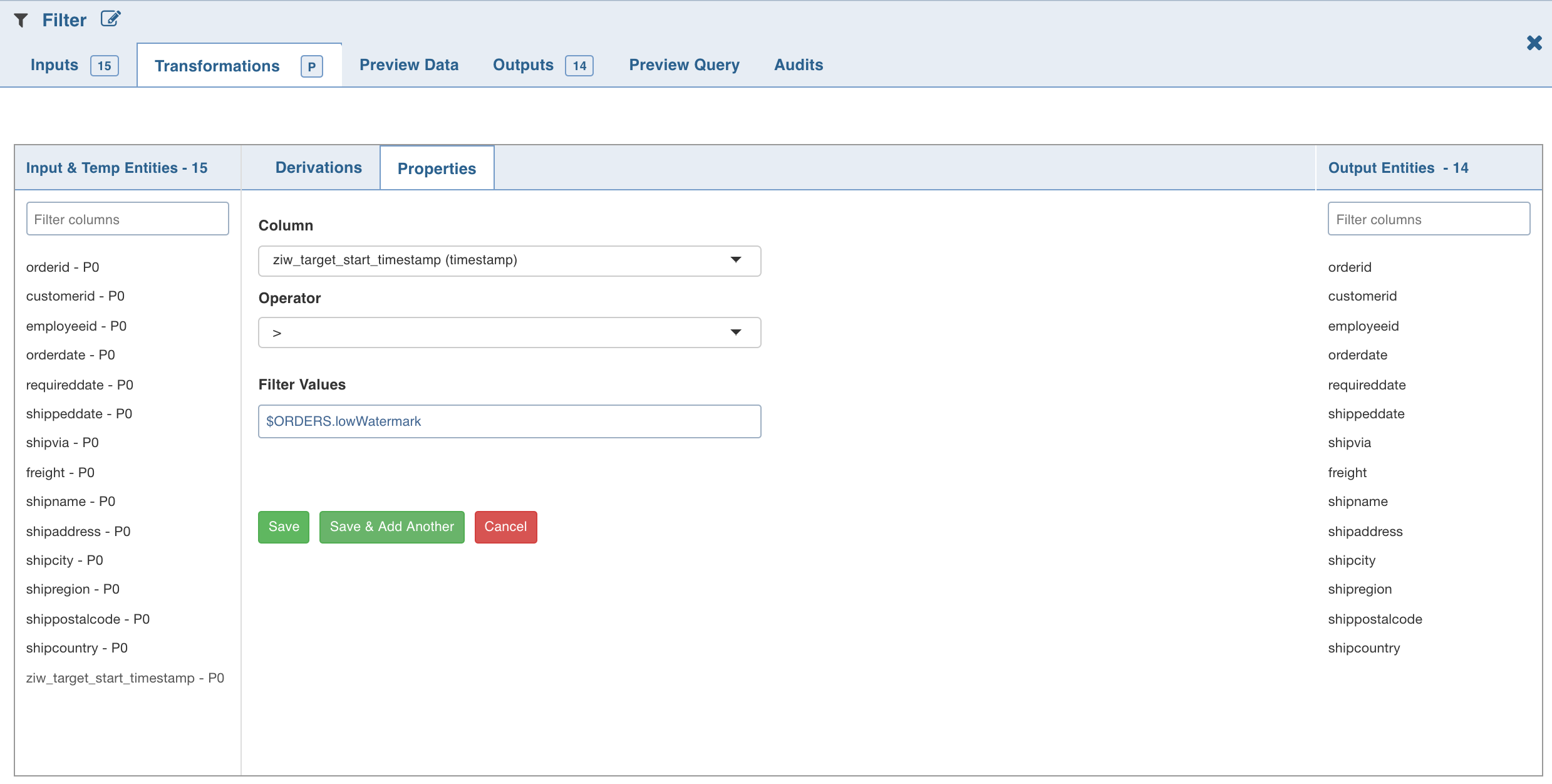

Click Add Filter, enter the following details and click Save.
| Field | Description |
|---|---|
| Column | The column on which the filter condition is to be applied. |
| Operator | The operator of the filter operation to be performed on the column. |
| Filter Values | The comparison value. |
You can add multiple filters and combine them using the Combine Condition option.
- To add SQL filter query, select the Advanced filter type and click Edit Filter.
- Enter the SQL query and click Save.

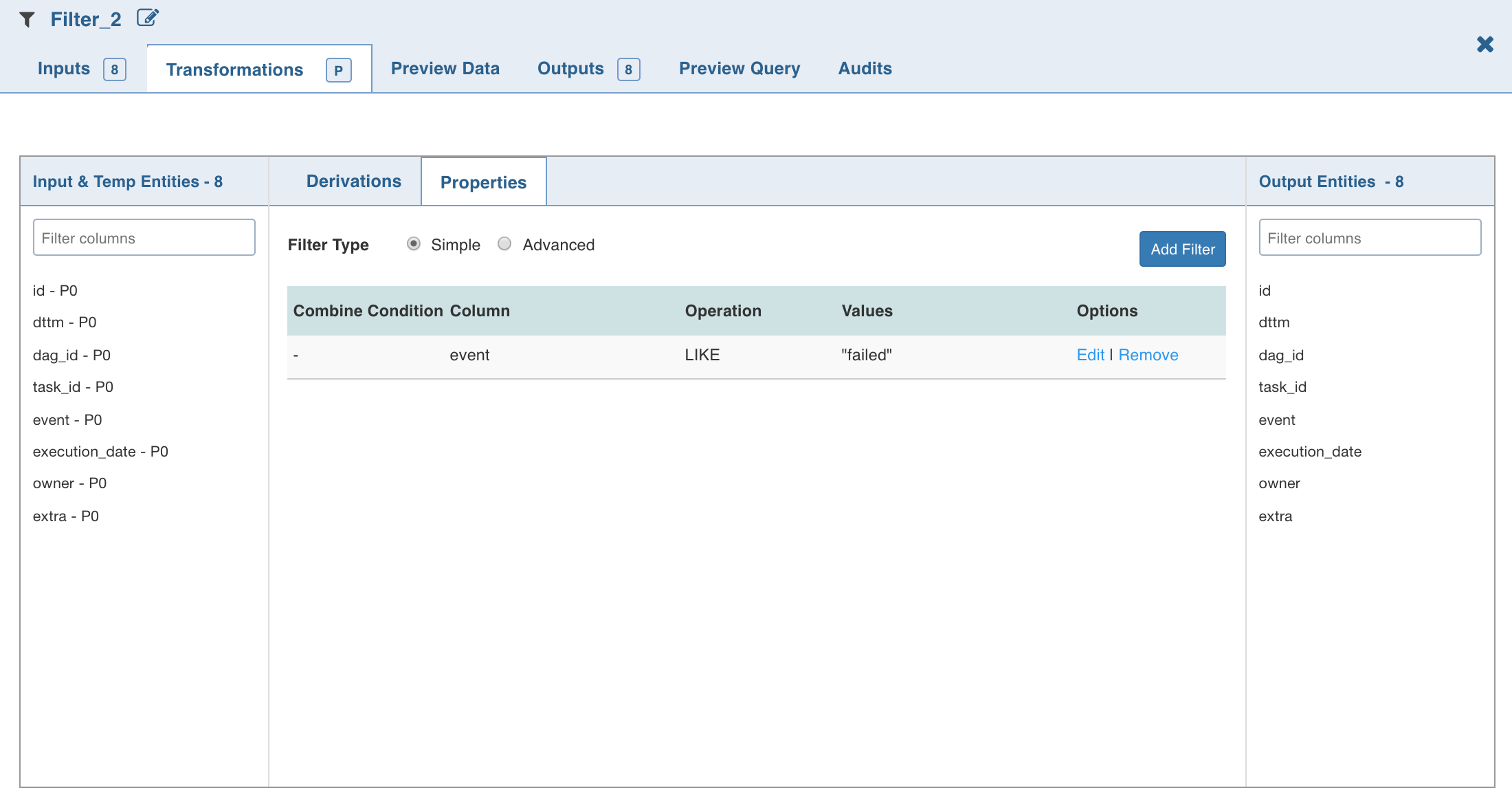

The added filters will be listed in the Properties section. The Properties section with the low and high watermark values will be displayed.
